Ultra Drive

Ultra Drive: A Hands-Free Racing Game

Wave your hand — steer your car.
A futuristic racing experience controlled entirely through sensors, not buttons.

What Is Ultra Drive?

Ultra Drive is an experimental racing prototype built in Unreal Engine 5, where players control a car using real-world motion sensors connected through a NodeMCU (ESP8266).

There’s no keyboard.
No joystick.
Only motion.

🔧 Circuit Setup & Hardware

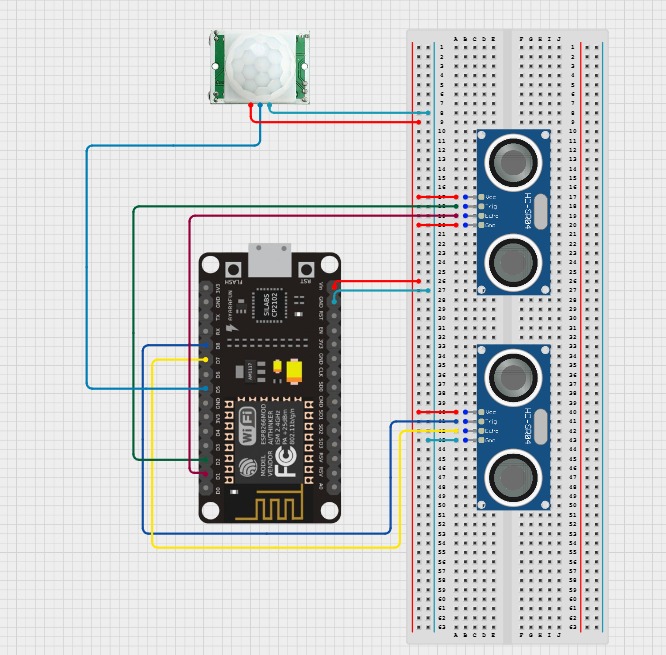

Full Circuit Diagram

Sensor Input Demo Video

See how hand motion and PIR detection trigger gameplay in real time.

 Components Used:

• NodeMCU ESP8266

• 2 x Ultrasonic sensors (left/right drift)

• 1 x PIR sensor (Boost)

• USB Serial Connection to PC

 Input System & Plugin

To bridge Unreal Engine and the ESP8266:

• Serial COM Plugin Used: [UE4Duino (or your plugin name)]

• Base Template: Unreal Vehicle Template

 Input Mapping:

• "LEFT" – Left Ultrasonic sensor detects hand → Drifts car left

• "RIGHT" – Right Ultrasonic sensor detects hand → Drifts car right

• "Boost" – Pir Sensor detects Motion → Add boost to car


Inputs are read via serial and parsed through Blueprint logic inside Unreal Engine.

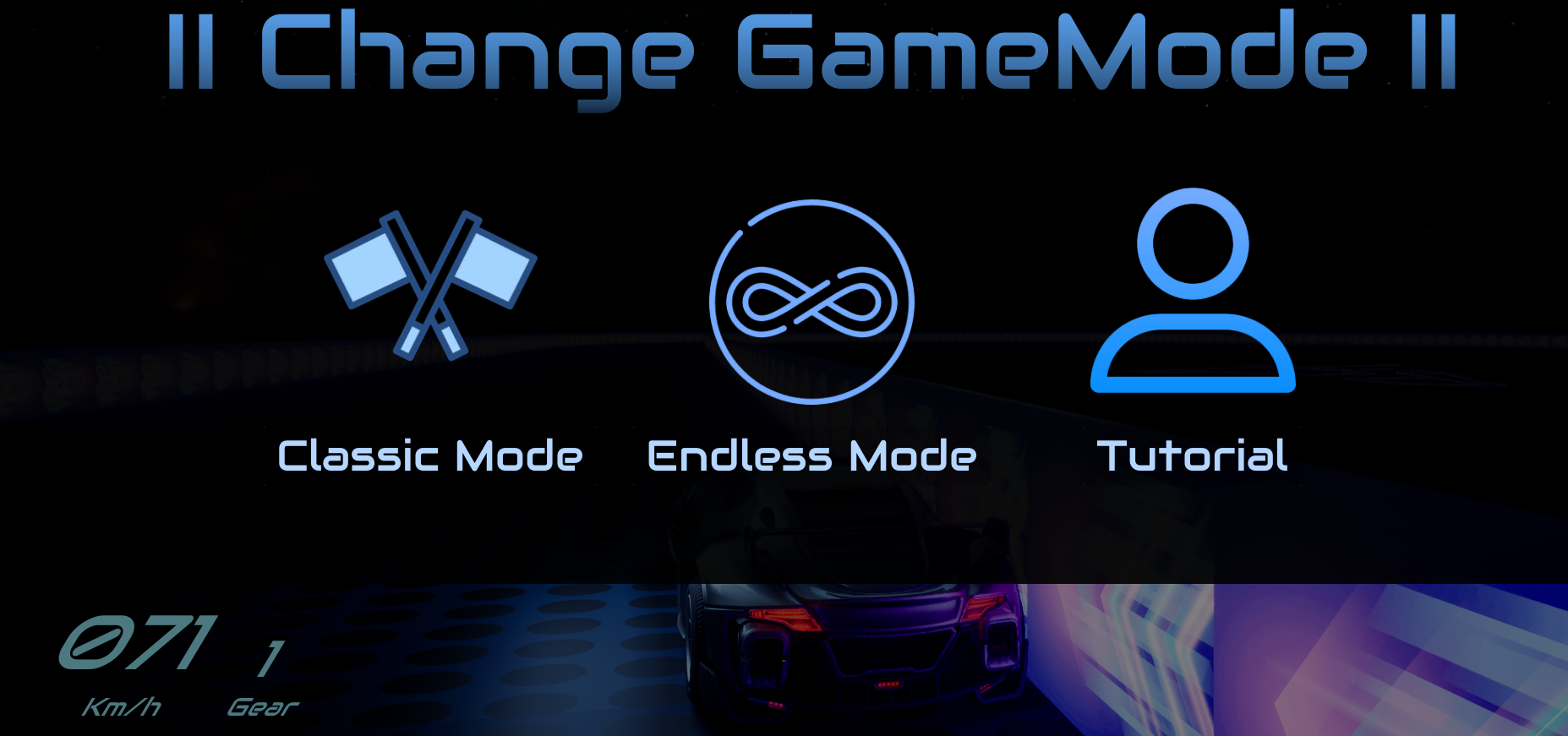

🗺️ Game Modes

Ultra Drive includes three playable levels, each designed for a unique experience:

1. 🌀 Endless Mode

   • Loops infinitely

   • Great for testing reaction time and endurance

2. 🎯 Classic Mode

   • Has a defined start and end point

   • Race to the finish line as fast as you can!

3. 🎓 Tutorial Mode

   • Simple flat plane

   • Ideal for testing sensor response and practicing controls

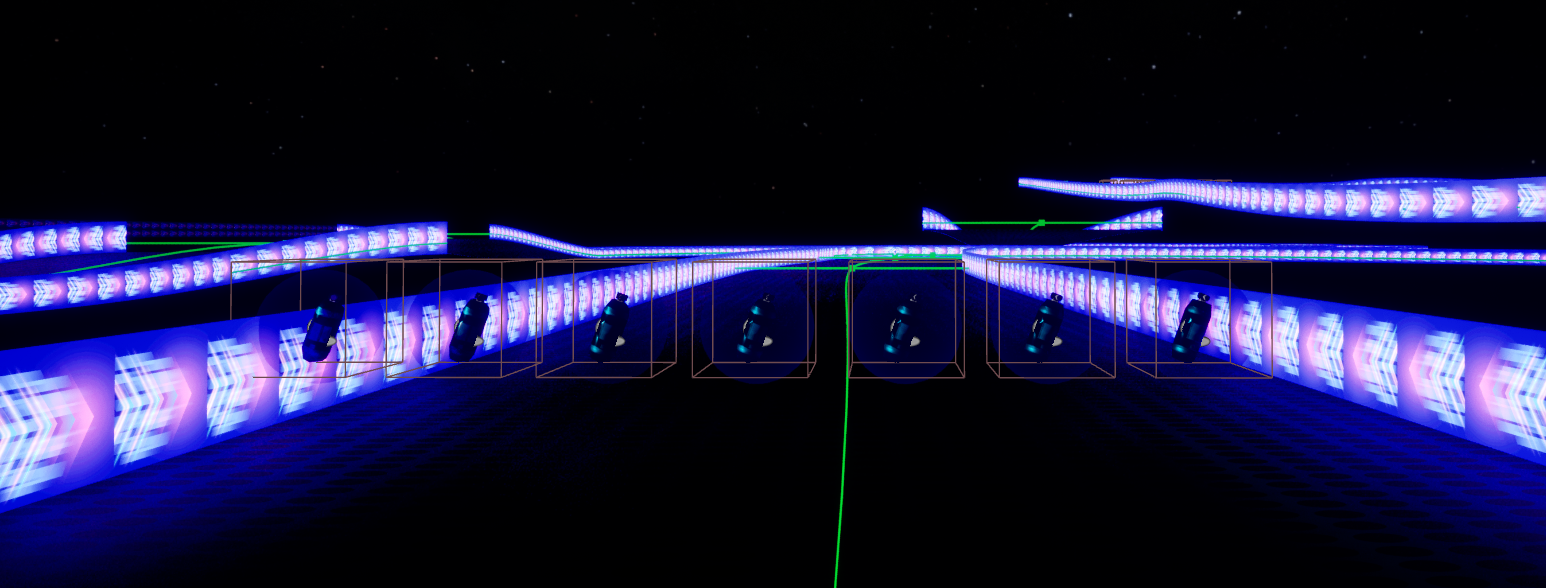

⚡ Pickups & Boosts

🎥 Boost Pickup

Showcasing in-game speed boost pickups triggered by sensor input

• Collect glowing boost pickups to get a temporary speed burst

• Adds dynamic control challenges when combined with motion steering

🛠️ Development Stack

Tool/Tech	Description
Unreal Engine 5	Blueprint-only game logic
ESP8266 NodeMCU	Sensor communication & signal sending
Serial COM Plugin	Reads input from hardware
Sensors	2x Ultrasonic (left/right), 1x PIR
Level Design	3 custom modes (loop/classic/test)
